Track Blast Curtain Shield

Track Blast Curtain Shield

FP409 Track Curtain Shield

Product ID: FP409

The track curtain shield consists of several shields, can be used as a long barrier to protect facilities and workers from the explosive and incendiary effects of electrical arcs and flashes. The shield will reduce the risk of injury from blast and flame.

  • Material:
    • Shield: 100% Aramid fabric and Nomex® or Kermel® fire-resistant outer cover sewn into pattern with hanging straps, each of shields can be overlapped together with Velcro side by side.
    • Caster & track: durable plastic wheel / steel bracket, heavy load aluminum alloy track.
  • Color in dark blue (standard) or navy blue.
  • Shield sizes and colors are available to be customized.

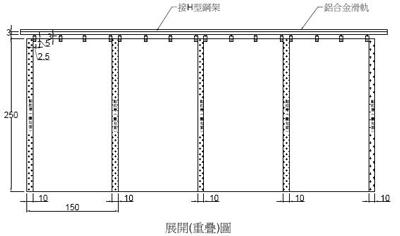

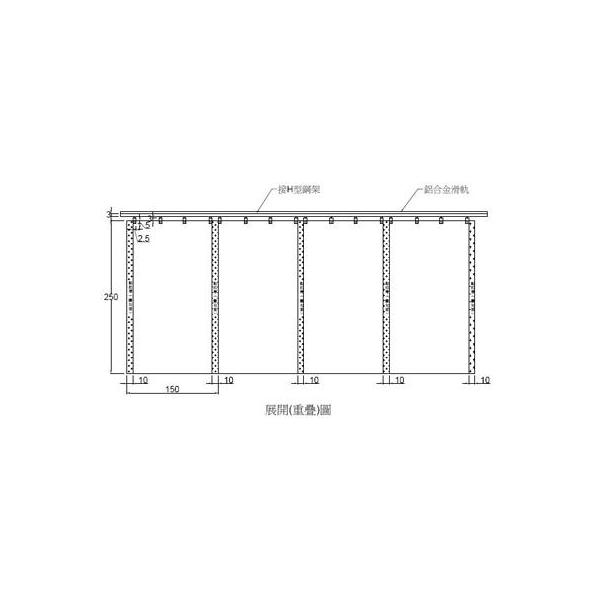

  • Note: Each of shield width can be made maximum 150cm±1cm or less, but no limitation for the total shield height and length.
  • Option:
    • Capability of reaching higher performance V50 1,250 or 1,650 or 1,850 f.p.s.
  • Performance: V50 1,450 f.p.s (standard), according to MIL-STD-662F test method, using caliber .22, 17 grains (102g) fragmentation.
  • Branded product.
  • Sample purchase.
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
